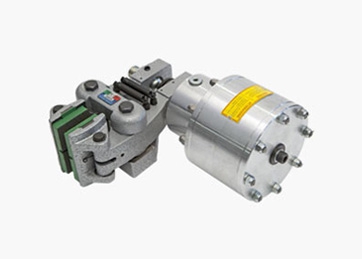

Caliper brake D3N-ID
Hydraulic caliper brake from Coremo
The COREMO D3N-ID spring-applied hydraulic caliper brake is operated by helical springs which generate a constant clamping force. The hydraulic operating system releases the brake by compressing the springs inside the thruster.
The brake may be used as a safety brake or as a holding and parking brake.
Download - Hydraulic Brakes Brochure.pdf
| Braking force F | D3N-ID 11200 N |
|---|---|
| Minimum release pressure | 50 bar D3N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 8 springs for 3N-ID |
| Torque proportionally less are achievable with | n. 6-4-2 springs for 3N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (raggio del disco in m - 0.033) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4kW |
Brake-pads
We offer all original brake-pads from the entire Coremo range of brakes. For more information, please contact us on [email protected].
Spare parts
For spare parts, check the serial number printed on your brake and send it to [email protected]. With the serial number we can identify all the spare parts you need.
