HYDRAULIC CALIPER BRAKE
Coremo hydraulic brakes are designed to provide a simple, fast solution to the safety requirements of a wide range of industrial applications. COREMO hydraulic brakes are also available in caliper and direct versions, both in oil-applied and spring-applied types.
Scroll to: Hydraulic caliper brake - Oil-applied | Spring-applied Direct hydraulic brakes - Oil-applied | Spring-applied

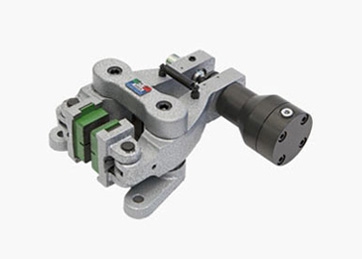

HYDRAULIC CALIPER BRAKE – OIL APPLIED
Art.nr: A3-ID
| Braking force F | A3-ID 15987 N at 100 bar |
|---|---|
| Max pressure | 100 bar |
| Max total wear | 16 mm |
| Thickness of new lining | 16 mm |
| Continuous thermal capacity Qc | 1.7 kW |
| Continuous thermal capacity for double pad version Qc | 2.7 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.009 dm3 |
HYDRAULIC CALIPER BRAKE – OIL APPLIED
Art.nr: D3-ID
| Braking force F | D3-ID 14868 N at 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max pressure | 100 bar |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.008 dm3 |
HYDRAULIC CALIPER BRAKE – OIL APPLIED
Art.nr: F3-ID
| Braking force F | F3-ID 14868 N a 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max pressure | 100 bar |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.008 dm3 |
HYDRAULIC CALIPER BRAKE – OIL APPLIED
Art.nr: G3-ID
| Braking force F | G3-ID 14868 N at 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.062) = Nm |
| Max pressure | 100 bar |
| Max total wear | 10 mm |
| Thickness of new lining | 8 mm |
| Continuous thermal capacity Qc | 14 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.008 dm3 |

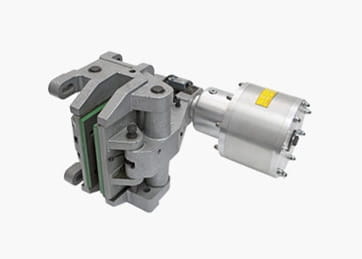

HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: E4N-ID
| Braking force F | E4N-ID 42000 N |
|---|---|
| Minimum release pressure | 60 bar |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 16 springs |
| Torque proportionally less are achievable with | n. 14 - 12 - 10 springs |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.054 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.065) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 13 mm |
| Continuous thermal capacity Qc | 20 kW |

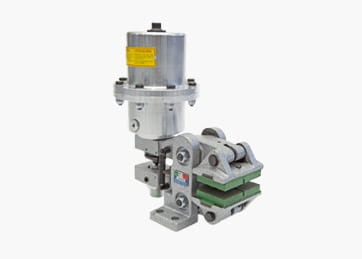

HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: F2N-ID
| Braking force F | F2N-ID 5600 N |
|---|---|
| Minimum release pressure | 25 bar F2N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 4 springs for 2N-ID |
| Torque proportionally less are achievable with | n. 2 springs for 2N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4 kW |

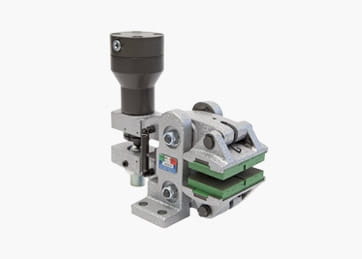

HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: F3N-ID
| Braking force F | F3N-ID 11200 N |
|---|---|
| Minimum release pressure | 50 bar F3N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 8 springs for 3N-ID |
| Torque proportionally less are achievable with | n. 6-4-2 springs for 3N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4 kW |

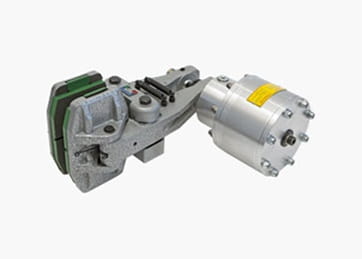

HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: G2N-ID
| Braking force F | G2N-ID 5600 N |
|---|---|
| Minimum release pressure | 25 bar G2N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 4 springs for 2N-ID |
| Torque proportionally less are achievable with | n. 2 springs for 2N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.062) = Nm |
| Max total wear | 10 mm |
| Thickness of new lining | 8 mm |
| Continuous thermal capacity Qc | 14 kW |

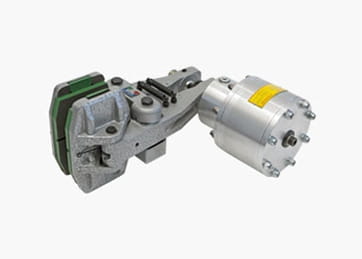

HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: G3N-ID
| Braking force F | G3N-ID 11200 N |
|---|---|
| Minimum release pressure | 50 bar G3N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 8 springs for 3N-ID |
| Torque proportionally less are achievable with | n. 6-4-2 springs for 3N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.062) = Nm |
| Max total wear | 10 mm |
| Thickness of new lining | 8 mm |
| Continuous thermal capacity Qc | 14 kW |
HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: A2N-ID
| Braking force F | A2N-ID 5900 N |
|---|---|
| Minimum release pressure | 25 bar A2N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 4 springs for 2N-ID |
| Torque proportionally less are achievable with | n. 2 springs for 2N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.018 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.03) = Nm |
| Max total wear | 16 mm |
| Thickness of new lining | 16 mm |
| Continuous thermal capacity Qc | 1.7 kW |
HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: A3N-ID
| Braking force F | A3N-ID 11800 N |
|---|---|
| Minimum release pressure | 50 bar A3N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 8 springs for 3N-ID |
| Torque proportionally less are achievable with | n. 6-4-2 springs for 3N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.018 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.03) = Nm |
| Max total wear | 16 mm |
| Thickness of new lining | 16 mm |
| Continuous thermal capacity Qc | 1.7 kW |
HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: D2N-ID
| Braking force F | D2N-ID 5600 N |
|---|---|
| Minimum release pressure | 25 bar D2N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 4 springs for 2N-ID |
| Torque proportionally less are achievable with | n. 2 springs for 2N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4kW |
HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: D3N-ID
| Braking force F | D3N-ID 11200 N |
|---|---|
| Minimum release pressure | 50 bar D3N-ID |
| Max pressure | 100 bar |
| The torque values specified are obtained with | n. 8 springs for 3N-ID |
| Torque proportionally less are achievable with | n. 6-4-2 springs for 3N-ID |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (raggio del disco in m - 0.033) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4kW |

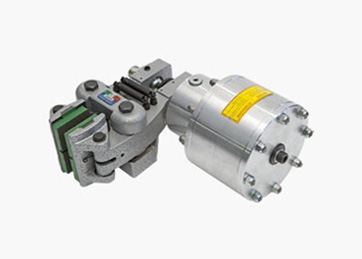

HYDRAULIC CALIPER BRAKE – SPRING APPLIED
Art.nr: D3N-ID/17
| Braking force F | D3N-ID/17 17000 N |
|---|---|
| Minimum release pressure | 60 bar |
| Max pressure | 100 bar |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.017 dm3 |
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4kW |

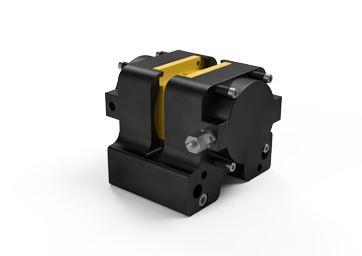

DIRECT HYDRAULIC BRAKES - OIL-APPLIED
Art.nr: ID 800H2
| Braking force F | ID 800 20200 N at 100 bar |
|---|---|
| Dynamic torque | F • (disc radius in m - 0.034) = Nm |
| Max pressure | 100 bar |
| Max total wear | 10 mm |
| Thickness of new lining | 17.5 mm |
| Continuous thermal capacity Qc | 2.5 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.01 dm3 |

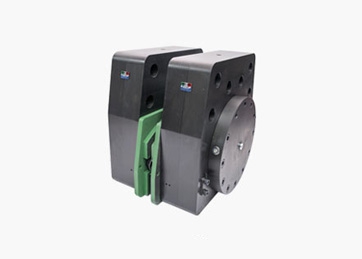

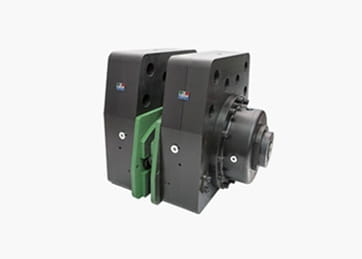

DIRECT HYDRAULIC BRAKES - OIL-APPLIED
Art.nr: ID 3000
| Braking force F | ID 3000 300000 N at 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.124) = Nm |
| Max pressure | 100 bar |
| Max total wear | 20 mm |
| Thickness of new lining | 16 mm |
| Continuous thermal capacity Qc | 80 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.2 dm3 |

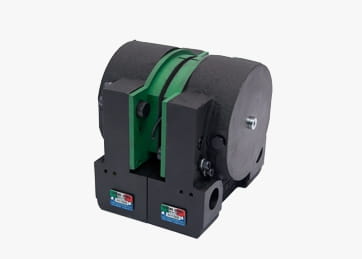

DIRECT HYDRAULIC BRAKES - OIL-APPLIED
Art.nr: ID 900
| Braking force F | ID 900 45500 N at 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.054) = Nm |
| Max pressure | 100 bar |
| Max total wear | 16 mm |
| Thickness of new lining | 14 mm |
| Continuous thermal capacity Qc | 10 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.044 dm3 |

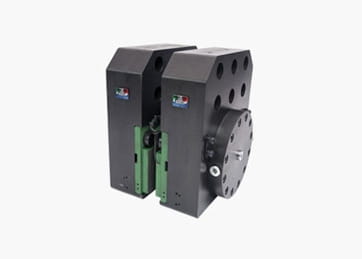

DIRECT HYDRAULIC BRAKES - OIL-APPLIED
Art.nr: ID 2000
| Braking force F | ID 2000 200000 N at 200 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.071) = Nm |
| Max pressure | 200 bar |
| Max total wear | 18 mm |
| Thickness of new lining | 15 mm |
| Continuous thermal capacity Qc | 29 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.054 dm3 |

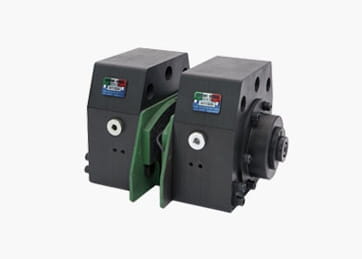

DIRECT HYDRAULIC BRAKES - SPRING-APPLIED
Art.nr: ID 800 N
| Braking force F | ID 800N-13 13000 N ID 800N-8 8000 N |
|---|---|
| Dynamic torque | F • (disc radius in m - 0.048) = Nm |
| Max pressure | 200 bar |
| Max total wear | 12 mm |
| Thickness of new lining | 9 mm |
| Continuous thermal capacity Qc | 9.5 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.008 dm3 |
| (ID 800N-13) | Min. release pressure: 100 bar |
| (ID 800N-8) | Min. release pressure: 65 bar |

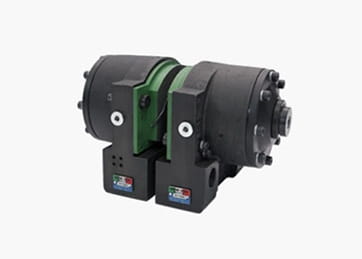

DIRECT HYDRAULIC BRAKES - SPRING-APPLIED
Art.nr: ID 900 N
| Braking force F | ID 900N-15 15000 N ID 900N-30 30000 N |
|---|---|
| Dynamic torque | F • (disc radius in m - 0.054) = Nm |
| Max pressure | 200 bar |
| Max total wear | 16 mm |
| Thickness of new lining | 14 mm |
| Continuous thermal capacity Qc | 10 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.02 dm3 |
| (ID 900N-15) | Min. release pressure: 50 bar |
| (ID 900N-30) | Min. release pressure: 100 bar |
DIRECT HYDRAULIC BRAKES - SPRING-APPLIED

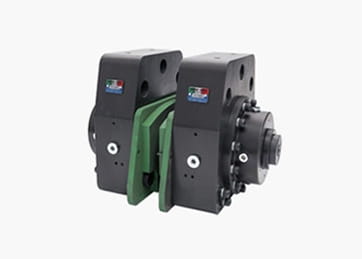

Art.nr: ID 1500 N
| Braking force F | ID 1500N 50000 N |
|---|---|
| Dynamic torque | F • (disc radius in m - 0.0725) = Nm |
| Minimum release pressure | 120 bar |
| Max pressure | 200 bar |
| Max total wear | 18 mm |
| Thickness of new lining | 14 mm |
| Continuous thermal capacity Qc | 21 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.025 dm3 |

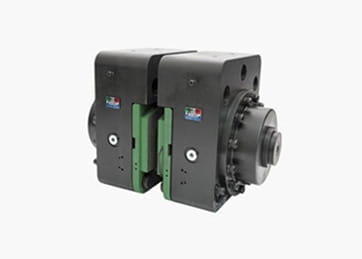

DIRECT HYDRAULIC BRAKES - SPRING-APPLIED
Art.nr: ID 2000 N
| Braking force F | ID 2000N-47 47000 N ID 2000N-58 58000 N ID 2000N-116 116000 N |
|---|---|
| Dynamic torque | F • (disc radius in m - 0.071) = Nm |
| Max pressure | 220 bar |
| Max total wear | 18 mm |
| Thickness of new lining | 15 mm |
| Continuous thermal capacity Qc | 25 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.037 dm3 |
| (ID 2000N-47) | Min. release pressure: 85 bar |
| (ID 2000N-58) | Min. release pressure: 100 bar |
| (ID 2000N-116) | Min. release pressure: 200 bar |

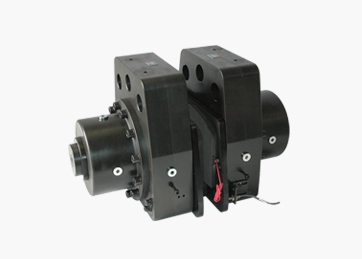

DIRECT HYDRAULIC BRAKES - SPRING-APPLIED
Art.nr: ID 2500 N
| Braking force F | 150000 N |
|---|---|
| Dynamic torque | = F • (disc radius m - 0.101) = Nm |
| Minimum release pressure | 180 bar |
| Max pressure | 220 bar |
| Max total wear | 18 mm |
| Thickness of new lining | 14 mm |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.3 dm3 |
DIRECT HYDRAULIC BRAKES - SPRING-APPLIED
Art.nr: ID 3000 N
| Braking force F | ID 3000N-200 200000 N ID 3000N-270 270000 N |
|---|---|
| Dynamic torque | F • (disc radius in m - 0.124) = Nm |
| Max pressure | 200 bar |
| Max total wear | 20 mm |
| Thickness of new lining | 16 mm |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.11 dm3 |
| (ID 3000N-200) | Min. release pressure: 115 bar |
| (ID 3000N-270) | Min. release pressure: 150 bar |
