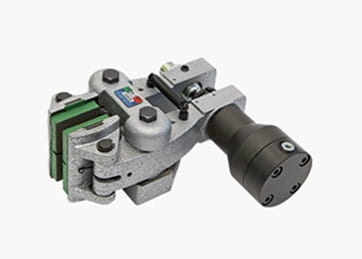

Caliper brake D3-ID
Hydraulic caliper brake from Coremo
COREMO D3-ID hydraulically operated caliper brakes can be used in industrial applications requiring regulation of the clamping force in response to variations in pressure.
The SG iron levers and steel thruster are designed to withstand high mechanical stresses and pressures.
Download - Hydraulic Brakes Brochure.pdf
| Braking force F | D3-ID 14868 N at 100 bar |
|---|---|
| Dynamic torque | = F • (disc radius in m - 0.033) = Nm |
| Max pressure | 100 bar |
| Max total wear | 12 mm |
| Thickness of new lining | 11 mm |
| Continuous thermal capacity Qc | 3.4 kW |
| Hydraulic fluid | Mineral oil based SAE/ISO 46 |
| Total oil displacement for 2 mm movement of each pad | 0.008 dm3 |

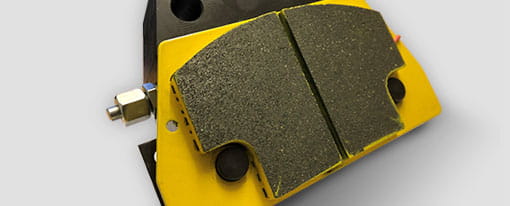

Brake-pads
We offer all original brake-pads from the entire Coremo range of brakes. For more information, please contact us on [email protected].
Spare parts
For spare parts, check the serial number printed on your brake and send it to [email protected]. With the serial number we can identify all the spare parts you need.
